OEM Immersible Ultrasonic Cleaner Submersible Ultrasonic Cleaner 28khz 40khz

Ask Lasest Price
Brand Name :	AcmeSonic
Certification :	CE, RoHS
Supply Ability :	1000 Piece/Pieces per Week
Price :	$300.00 - $800.00/pieces

Add to Cart

Product Details
Company Profile

OEM Immersible Ultrasonic Cleaner Submersible Ultrasonic Cleaner 28khz 40khz

Submersible ultrasonic plates for industrial ultrasonic tank 28khz 40khz

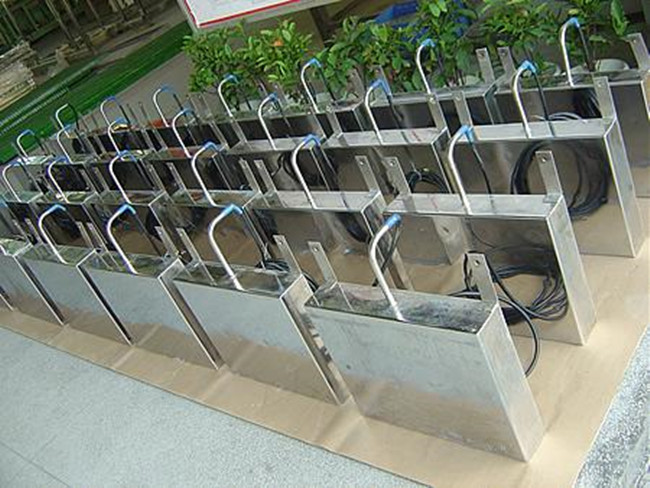

Immersible ultrasonic transducers box is a core part of the ultrasonic cleaning machine.
It can be connected to a generator via a cable and placed into a cleaning tank. The units can be placed into the tank horizontally or vertically. For larger tanks, several transducer boxes can be arranged in a multiple-transducer configuration.

Features:
* It is welded with thick SUS304 OR 316L stainless steel which is from top brand, which has good sealing performance and decay resistance
* Hard chrome plated surface
* Special gluing process which ensure highly coupled between ultrasonic transducers and stainless steel plate
* It can be installed bottom-mounting or wall-mounting
* Customized to solve different problems with different frequency, power, shape, size etc

* Number of the transducers is based on the tank capacity.

* Dual frequency is available: 28+40khz; 40+80khz, etc.

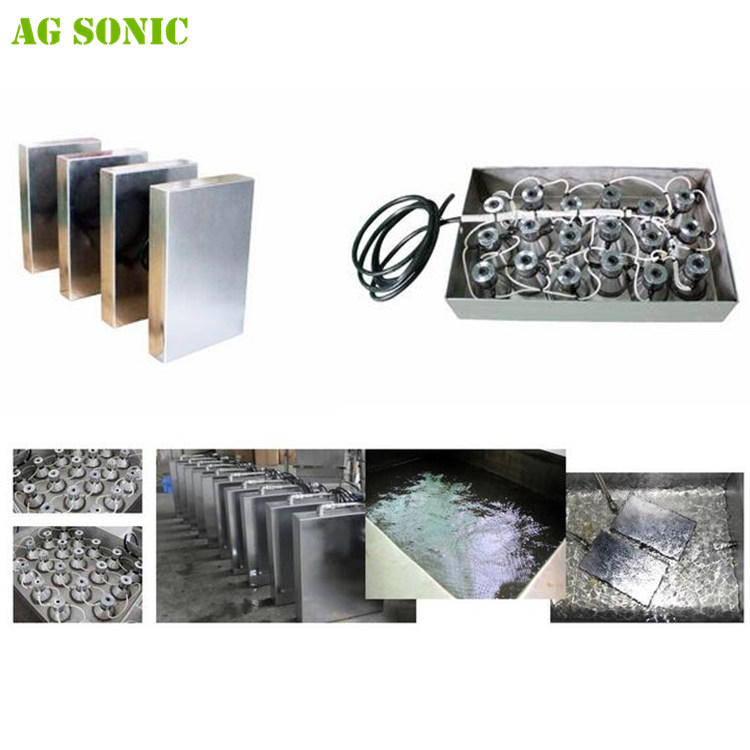

Build your own industrial ultrasonic tank using submersible ultrasonic transducers. These are sealed stainless steel enclosures which are added to your own tank and turn it into an ultrasonic cleaner. Generally speaking, this method is for larger, bespoke tank requirements. The number of transducer enclosures required depends on the size of your tank. The submersible transducer enclosures are powered by an ultrasonic generator unit.

OEM Immersible Ultrasonic Cleaner Submersible Ultrasonic Cleaner 28khz 40khz

Purpose of Ultrasonic Cleaner:

An Ultrasonic cleaner can do much more than just cleaning parts. It is used to degas solvents, disperse nanoparticles, emulsify & dissolve solvents as well as it is used in preparing lab samples. If your primary purpose is to clean parts, then you need to clearly define the size and weight of the parts, type of contamination and the cleanliness criteria that you are seeking.

Specification details:
* 1 transducer box and 1 unit generator is 1 set.
* Size of the transducer box: custom made is available
* SUS 316L stainless steel housing; Surface finishing: Hard-Cr Plating Treatment ( 20 + microns )

* Ultrasonic output power (Max.): based on the number of the transducer
* Ultrasonic frequency: 28KHz/40KHz available
* Generator power requirement: AC 110~120V ; AC 220/240V, 1,13AMP
* Adaptable for continuous operation and adjustable ultrasonic power
* Ultrasonic generator is with sweep mode

Product Description

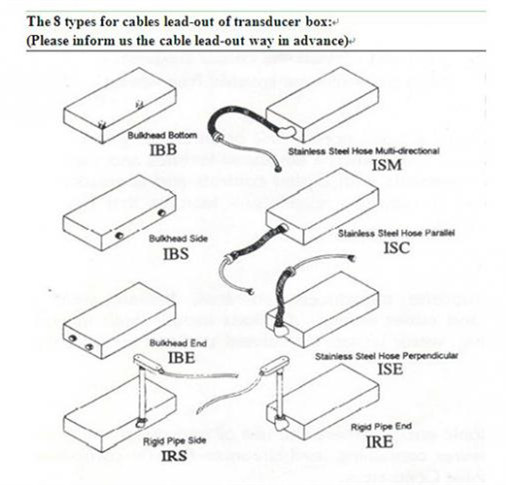

The 8 types for cables lead-out of transducer box:
(Please inform us the cable lead-out way in advance)

How to install the transducer boxes:

Specification

Power	600/900//1200/1500/1800W optional
Dimension(LWH)	500x406x100mm
Warranty	1 Year
Product name	ultrasonic cleaner transducer
Material	SUS304/SUS316L
Frequency	28/40khz
Dual frequency	available
Transducers	Based on your tank capacity
Control	ultrasonic generator
Application	for your own tank
Advantage	save the shipping cost

Company Profile

Guangzhou Meihong Intelligent Technology Co.,LTD is a manufacturer of ultrasonic cleaner with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Surface Spraying Treatment Industry,Machinery industry,Pharmaceutical Industry,Optical industry and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

FAQ

How many submersible ultrasonic transducer enclosures will I need?
The number and positioning of the submersible ultrasonic enclosures is primarily determined by the volume of liquid in the tank, shape of the existing tank and size of the parts.
Submersible ultrasonic transducers can be mounted on the sides or base of cleaning tanks, depending upon their shape and size. In general, side mounting is recommended for tanks where the depth is more than two times the smallest of the length / width. Mounting on the tank side reduces the debris and foreign material from settling on the top of the transducer box which will reduce the ultrasonic effectiveness.

These submersible ultrasonics can be made in 28khz or 40kHz frequency for hard to clean parts like engine blocks and cleaning burnt on carbon, and 40 kHz frequency for general parts cleaning including precision machined components, in an agitated immersion parts washer or stationary metal sided tanks. submersibles are
* Customised size and shape
* SUS 304 stainless steel plate
* Industrial grade integrated circuit
* 1-999 minutes cycle time
* Power adjustable
* 28KHz for 40KHz
* Digital controller

Submersible ultrasonic boxes are normally fixed into to stainless steel and other metal tanks only. Plastic or similar materials are not suitable for use with ultrasonic generators.
